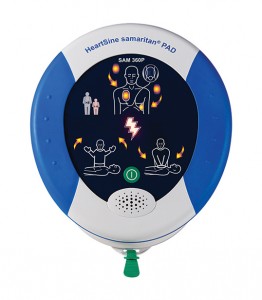

HeartSine samaritan PAD 360P fully automatic AED
;)
;)
;)
;)
;)
;)
;)
HeartSine samaritan PAD 360P fully automatic AED
Sudden Cardiac Arrest (SCA) is a leading cause of death globally. Response time is critical for survival. The HeartSine samaritan® PAD 360P was designed especially for use in public areas by providing a sophisticated defibrillator for adult or pediatric use, inside a lightweight and easy-to-operate system. Its advanced technology is balanced against the demands of real world use. This is a fully automatic AED.

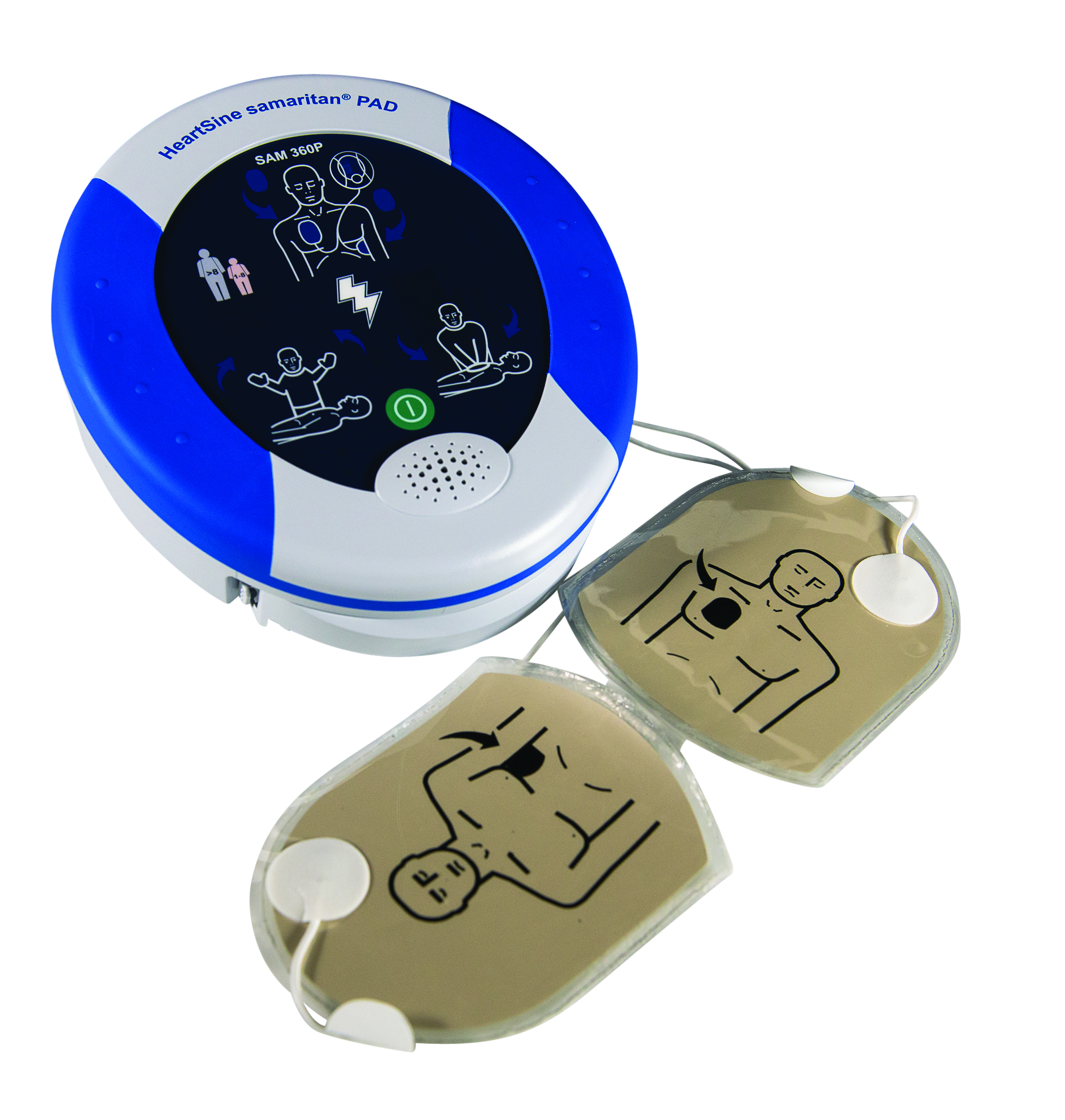

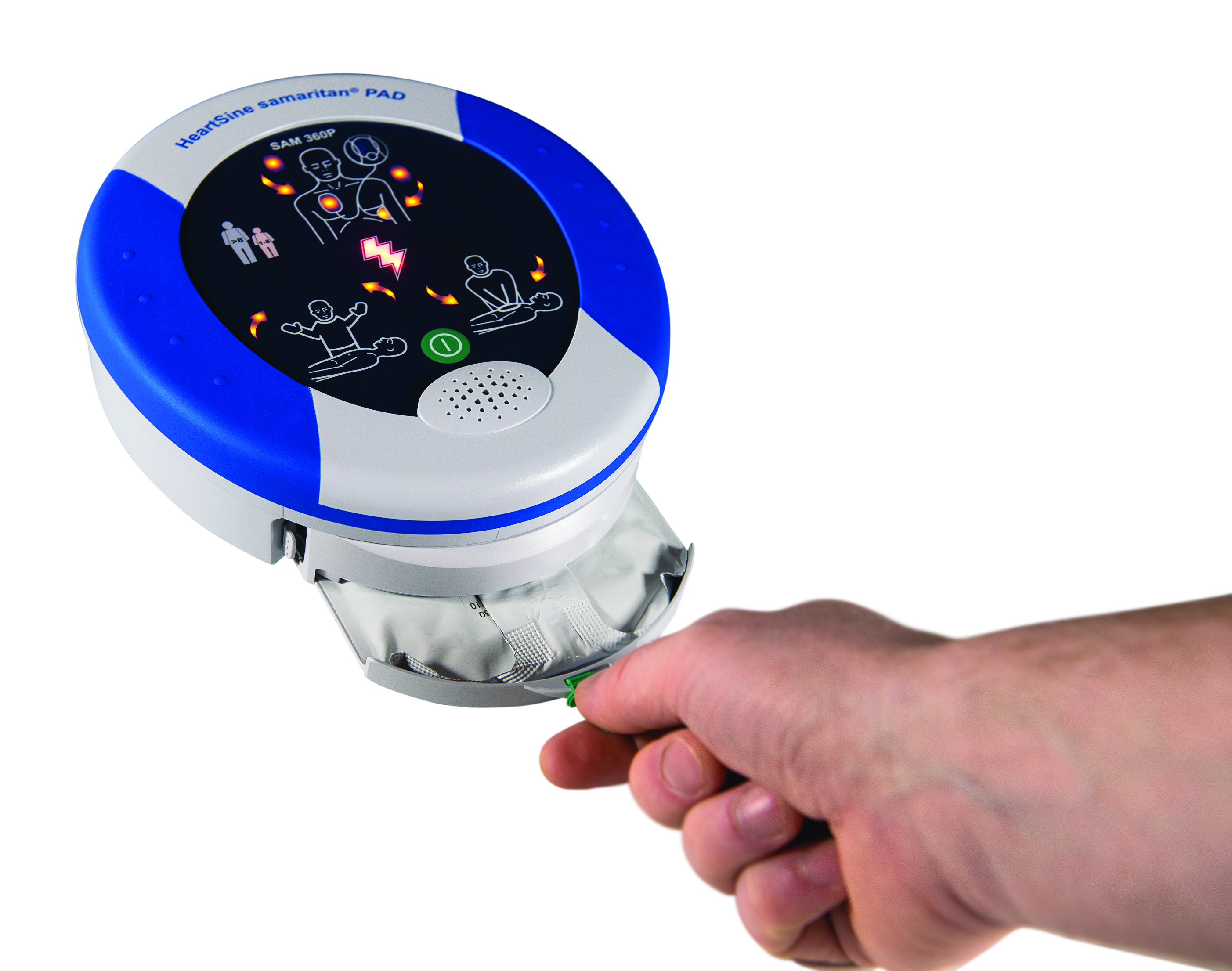

The 360P uses HeartSine’s practical Pad-Pak™, which incorporates the battery and electrodes in a single-use cartridge – meaning only one expiration date to monitor and only one item to replace after use. The 360P is suitable for use on adults and children. For children younger than 8 years or weighing less than 25 kg (55 lbs), a Pediatric-Pak™ is available.
How It Works

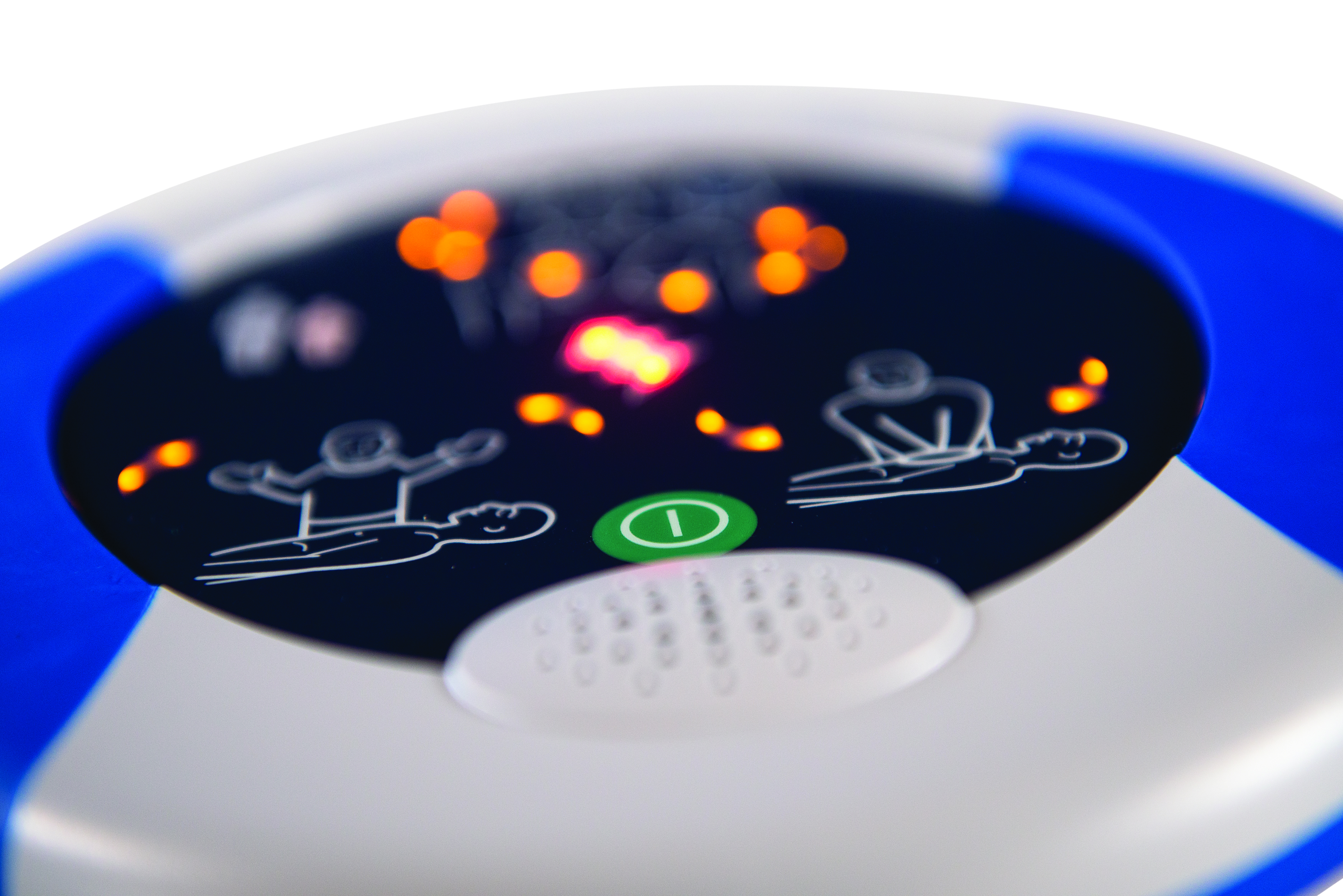

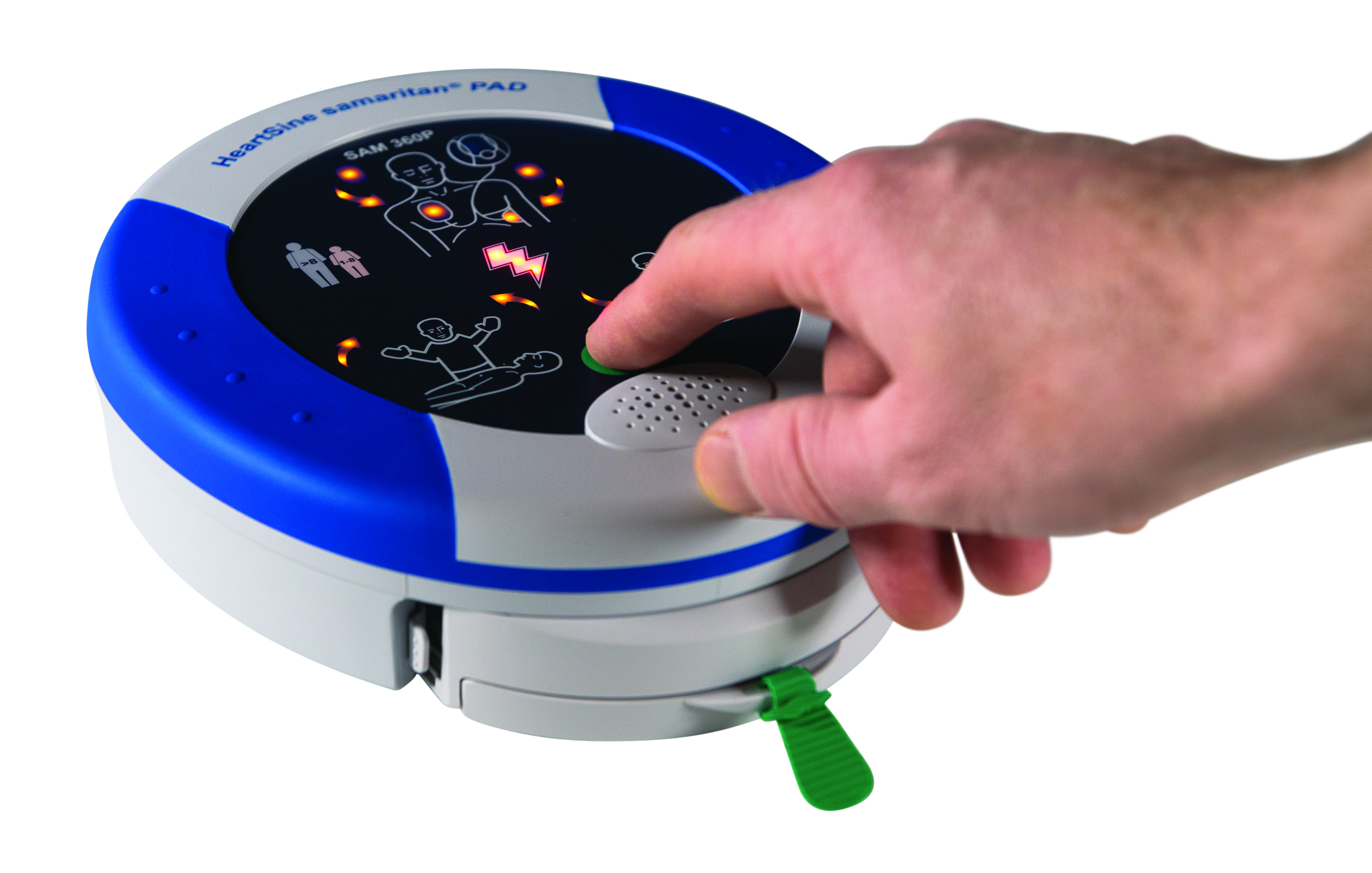

The HeartSine samaritan PAD is an automated external defibrillator (AED) that analyzes the heart rhythm and delivers an electrical shock to victims of Sudden Cardiac Arrest in order to restore the heart to normal rhythm. This user-friendly AED provides easy to follow visual and audio prompts to guide the rescuer from pad application to shock delivery, if required.
Defibrillator
|
1 PAD-Pak™ (combined battery & electrode cartridge) - 4 yr shelf time from DoM |
||
|
suitable for adults and children >8 years or > 25kg |
||
|

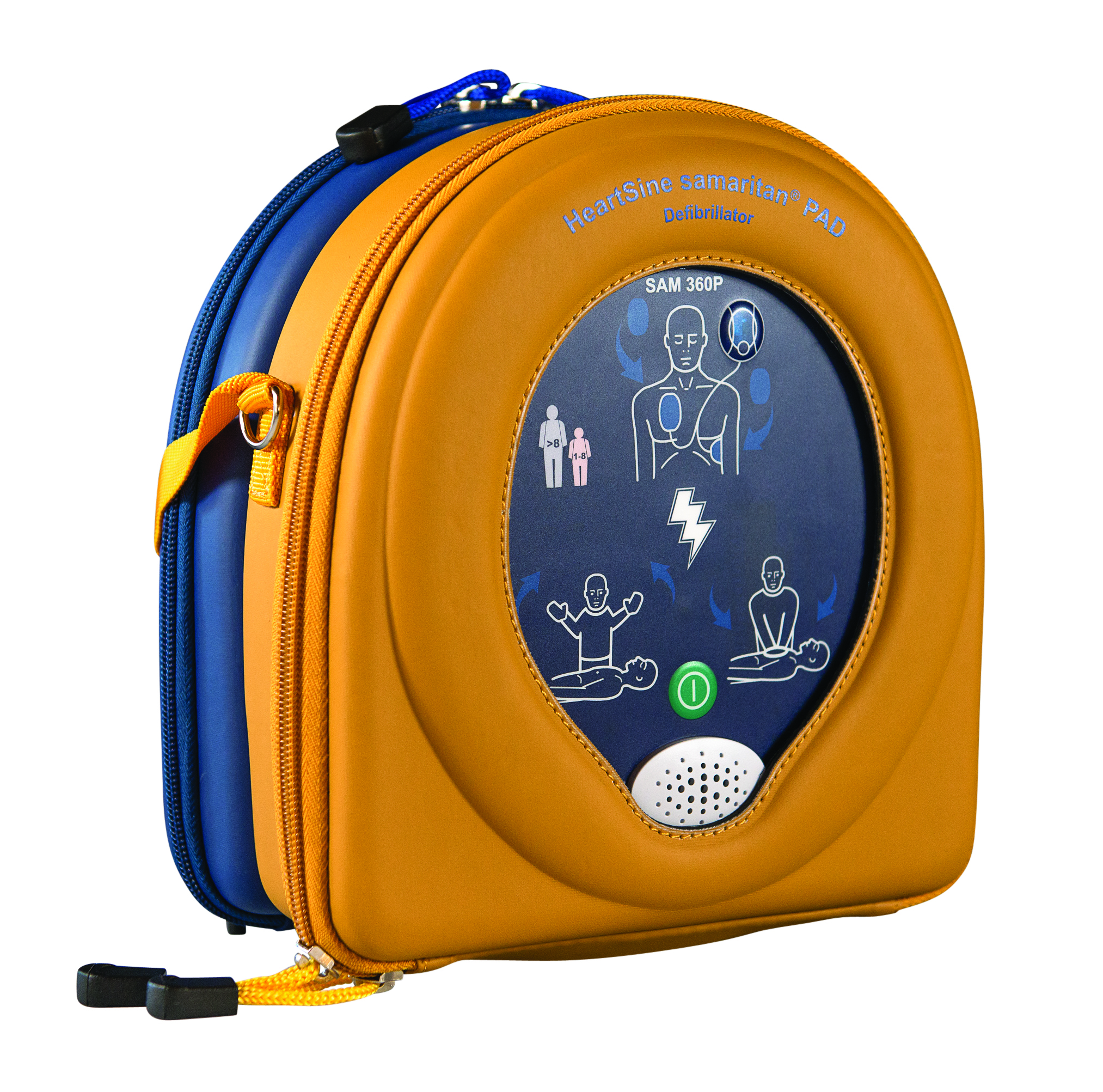

Carry Case (Yellow/Blue) |
||
|
User Manual, Quick Reference Card |
||
|
10 yr Warranty
The PAD 360P Defibrillator is maintenance free as are all HST devices. The device is fully CE Marked and FDA approved for use around the world. Software updates are free of charge. The hardware is guaranteed for 10 years and the unit is maintenance free with only one replaceable part after use. The HST samaritan PAD model 360P: suitable for use by trained lay users, semi professionals and professional users alike. The device is a life saver for private, business, commercial and professional use.Key DifferentiatorsHeartSine’s samaritan 360P PAD offers unique features: Compact in Size. Big on AbilityPortable and lightweight. At only 2.4 lbs (1.1 kg), weighs less and is up to 56% smaller than other portable defibrillators. Highest level of dust/moisture protection. The samaritan PAD has a rating of IP56, providing the 360P defibrillator with the highest level of protection from dust or moisture ingress in the industry. Durable. The samaritan PAD 360P resists shock and vibration and carries an IP56 Rating, the industry’s highest rating against dust and moisture ingress. It also carries a ten-year unit warranty that demonstrates the reliability of this quality unit. Advanced technology. The samaritan PAD 360P utilizes proprietary electrode technology, advanced and stable firmware, and proprietary SCOPE™* Biphasic Technology (an escalating and low-energy waveform that automatically adjusts for patient impedance differences) to assess rhythm and maximize effective shock delivery if necessary. *Self-Compensating Output Pulse Envelope technology automatically compensates energy, slope and pulse envelope for the patient. Easy-to-Follow Visual and Voice PromptsUser-friendly. The samaritan PAD 360P features easy-to understand visual and voice prompts that guide a user through the process, including CPR coaching. Three large, easy-to-see icons facilitate the rescue process: “Attach pads,” “Do not touch the patient,” and “It is safe to touch the patient”. Two-button operation. Only two buttons, ON/OFF and SHOCK, are required for straightforward operation. Always ready. A System Status Ready Indicator flashes to show that the complete system is operational and ready for use. Device automatically runs self check each week. Real Economy for the Real WorldTwo parts, one expiration date. Pad-Pak™ cartridge combines battery and electrode pads, with just one expiration date to monitor. Low cost of ownership. With a shelf life of four years from date of manufacture, the Pad-Pak offers significant savings over other defibrillators that require separate battery and pad units. Protects both adults and children. The HeartSine PAD’s built-in intelligence and unique Pediatric Pad-Pak, which is available for 1-8 years of age (<25 kg or 55 lbs), ensure the appropriate energy level is delivered for children. Field upgradeable. Easily upgrade in the field to the latest AHA/ERC guidelines. SpecificationsPhysical (With Pad-Pak™ Inserted)
|
||
| Weight (including Pad-Pak Battery): | 1.1 kg (2.4 lbs) |
| Waveform: | Self-Compensating Output Pulse Envelope (SCOPE) Biphasic waveform. Optimized biphasic escalating waveform compensates energy, slope and envelope for patient impedance. |
Energy Selection
| Adult: | Shock 1: 150J; Shock 2: 150J; Shock 3: 200J |
| Pediatric: | Shock 1: 50J; Shock 2: 50J; Shock 3: 50J |
Charging Time
| New Battery: | Typically 150J in < 8 seconds, 200J in < 12 seconds |
| After Six Discharges: | Typically 150J in < 8 seconds, 200J in < 12 seconds |
Patient Analysis System
| Method: | Evaluates patient’s ECG, signal quality, electrode contact integrity and patient impedance to determine if defibrillation is required. |
| Sensitivity/Specificity: | Meets ISO 60601-2-4 |
Environmental
| Operating/Standby Temperature: | 0°C to 50°C (+32°F to +122°F) |
| Temporary Transportation Temperature: | –10°C to 50°C (14°F to 122°F) for up to two days. Unit must be returned to standby/operating temperature for 24 hours before use. |
| Relative Humidity: | 5% to 95% (non-condensing) |
| Water Resistance: | IEC 60529/EN 60529 IP56 |
| Altitude: | 0 to 4,575 meters (0 to 15,000 feet) |
| Shock: | MIL STD 810F Method 516.5, Procedure I (40G’s) |
| Vibration: | MIL STD 810F Method 514.5+Category 4 Truck Transportation – US HighwaysCategory 7 Aircraft – Jet 737 & General Aviation (Exposure) |
| EMC: | EN 60601-1-2 |
| Radiated Emissions: | EN55011 |
| Electrostatic Discharge RF Immunity: | EN61000-4-3 80MHZ-2.5GHZ (10V/m) |
| Magnetic Field Immunity: | EN61000-4-8 (3 A/m) |
| Aircraft: | RTCA/DO-160F, Section 21 (Category M) |
| Falling Height: | 1 meter (3.3 feet) |
Event Documentation
| Type: | Internal Memory |
| Memory Capacity: | 90 minutes of ECG (full disclosure) and event/incident recording |
| Playback Capabilities: | Custom USB cable directly connected to PC and Saver™ EVO Windows-based data review software |
Materials Used
| Housing: | ABS, Santoprene |
| Electrodes: | Hydrogel, Silver, Aluminium and Polyester |
Pad-Pak — Electrode and Battery Cartridge
Adult Pad-Pak (Pad-Pak-01/Pad-Pak-03)
Pediatric Pad-Pak (Pad-Pak-02/Pad-Pak-04)
| Shelf Life: | Four years from manufacture date |
| Weight: | 0.2 kg (0.44 lbs) |
| Size: | 10 cm x 13.3 cm x 2.4 cm (3.93 in x 5.24 in x .94 in) |
| Battery Type: | Lithium Manganese Dioxide (LiMnO2) |
| Capacity: | > 60 shocks at 200J18V, 1.5 Amp Hrs |
| Electrodes: | HeartSine samaritan® disposable defibrillation pads are supplied as standard with each device |
| Placement: | Anterior-lateral (Adult); Anterior-posterior (Pediatric) |
| Active Gel Area: | 100 cm2 (15.5 in2) |
| Cable Length: | 1 meter (3.3 feet) |
